Specifications
| Weight | 23 lbs. |
|---|---|
| Height | 24 in |
| Certifications | NCHRP-350 |
| Dimensions | 7”x 11.25”x 58” |
| Compliance | MUTCD |
| Storage | 75 cubic ft. |
| Certifications | MUTCD; NCHRP-350 |
| Pallet Quantity | 640 |
Need Help?
Contact our Specialists at (888) 766-2616Downloads

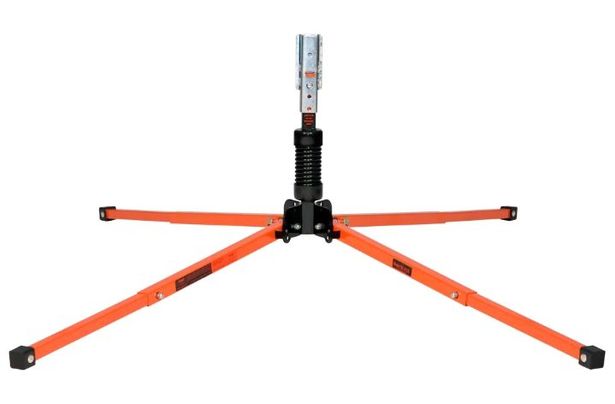

Single Spring Safety Sign Stand
(0 reviews) | Write your reviewModel# BSSZ412SO
Safety sign stand with universal bracket works with any brand of roll up construction sign.
Register Zipcode or login for
shipping estimate
$218 10/ ea
Our location
Click to see our current shipping locations. This product might not be available on all warehouses.
Buy now pay later
Check out our online credit terms options and our super-fast approval process.
Price Match
With competitive pricing throughout the store, a price match guarantee that applies no matter how you choose to pay.
FAQ
Check out our frequently asked question session to learn more or to ask a question.
Overview

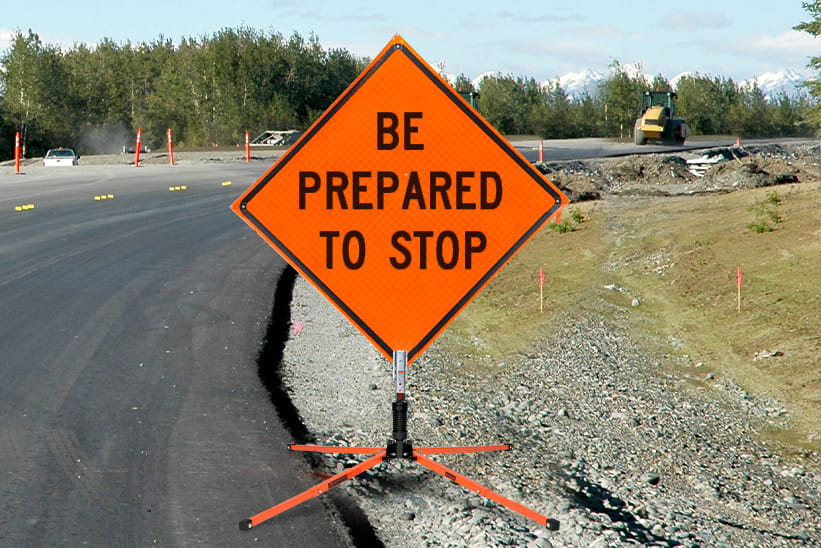

Single Spring Safety Sign Stand for All Roll Up Signs

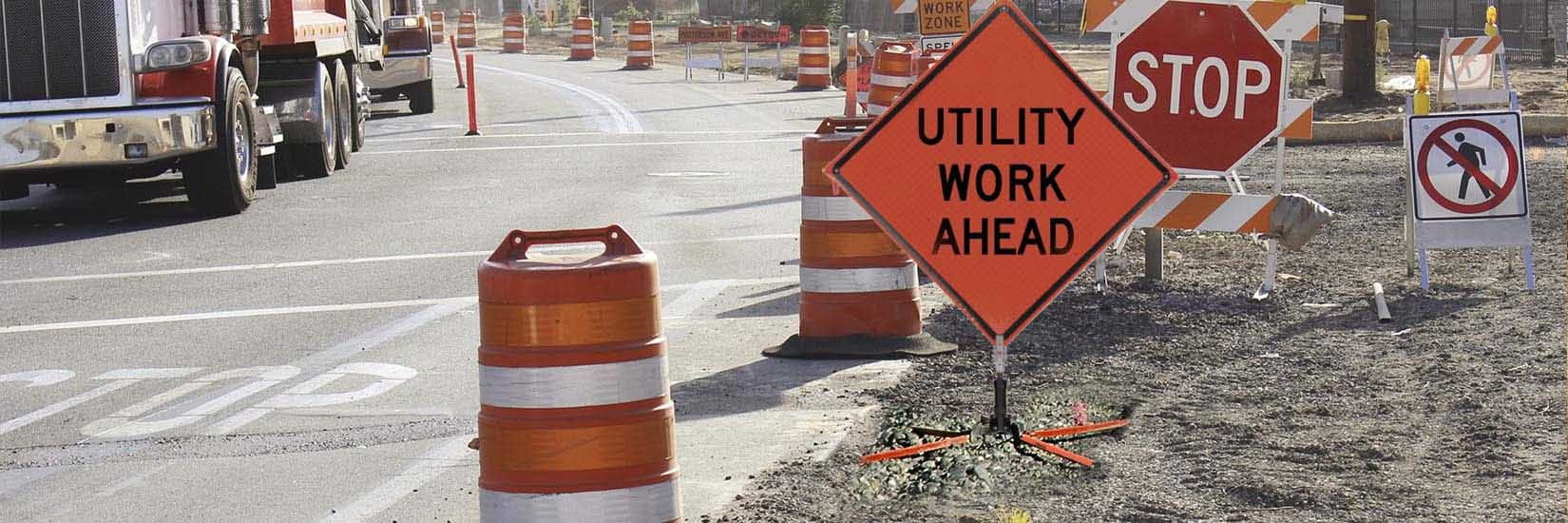

Securely display signs on highway projects, construction sites, maintenance areas, and more. SONCO’s sign stand delivers safety, visibility and technology.
Safety & Visibility:

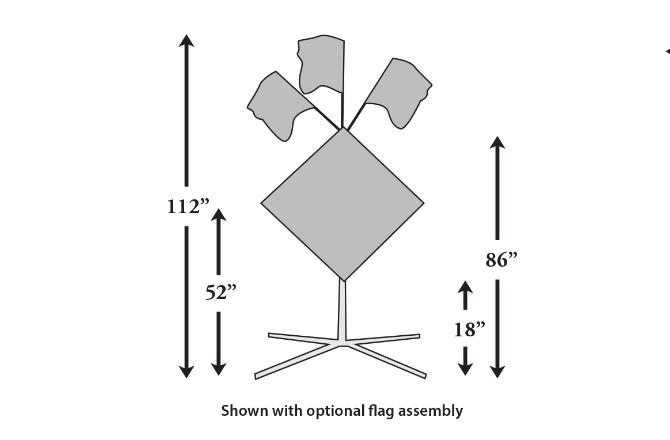

Bright orange, powder coated legs allow the SZ-412-S sign stand to be seen from highways to city sidewalks. And the stand holds roll-up signs 18” above the ground for maximum visibility. This height meets the minimum height requirement set by the MUTCD.
Nut and Bolt Construction:
Readily available replacement parts and simple nut and bolt construction allow for fast repairs for worn or damaged parts. Component parts can be replaced easily in the field, using simple hand tools!
Crash Test Breakaway Base:
The SZ-412-S’s new breakaway base is the first of its kind. It has been designed, if impacted, to rotate 90 degrees to the ground causing no damage to the undercarriage of the impacting vehicle.

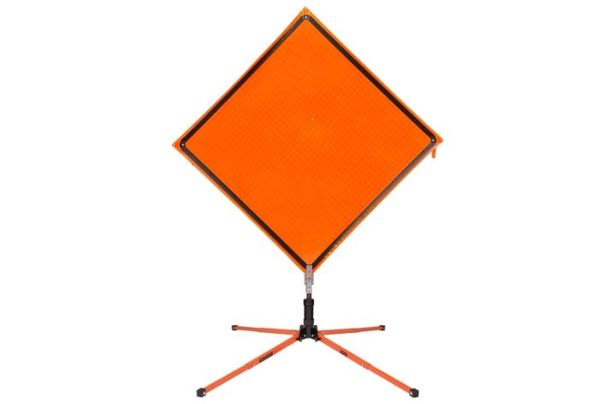

Single Spring Stand for Roll Up Signs Meets MUTCD Heigh Minimums

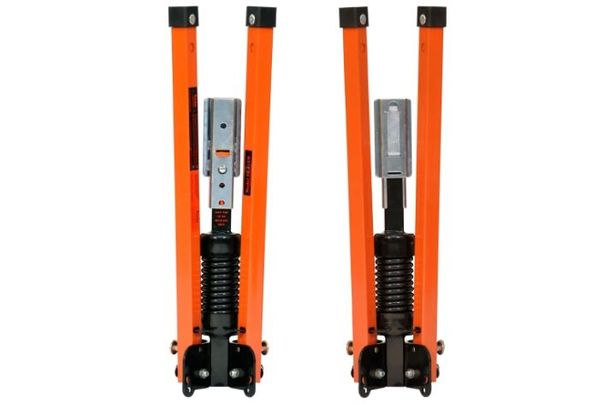

Lightweight and compact for ease i0n
storage design only 23 lbs
Single spring design
Both pull pin and kick release
of legs for quick set up
Powder-coated and zinc plated for
maximum corrosion resistance
NCHRP-350 Certified
MUTCD Compliant
High Visibility, Easy to Use and Certified

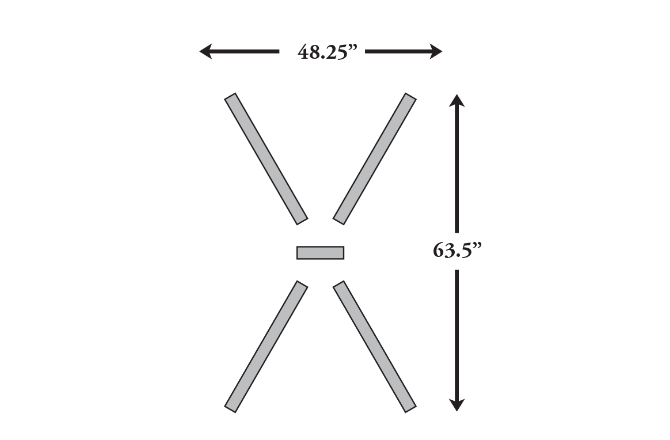

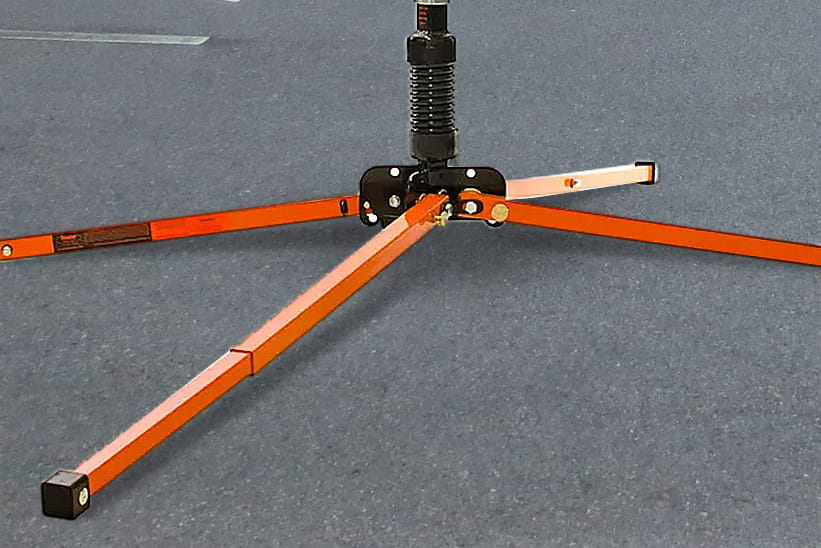

Bright orange powder-coated legs are independently adjustable for uneven surfaces. When using larger safety signs, get maximum wind resistance by ensuring all four legs are fully telescoped and locked down.
Set-Up Instructions:
1. Extend telescoping legs until locked in place.
2. Release leg lock mechanism and lower legs to ground.
3. Lift up on center upright until legs lock in place.
4. Insert panel into upright holder until spring button snaps in place.
Take Down Instructions:
1. Depress spring button and remove panel.
2. Release leg lock mechanism and raise legs.
3. Depress spring buttons and telescope legs.
PRO TIP:

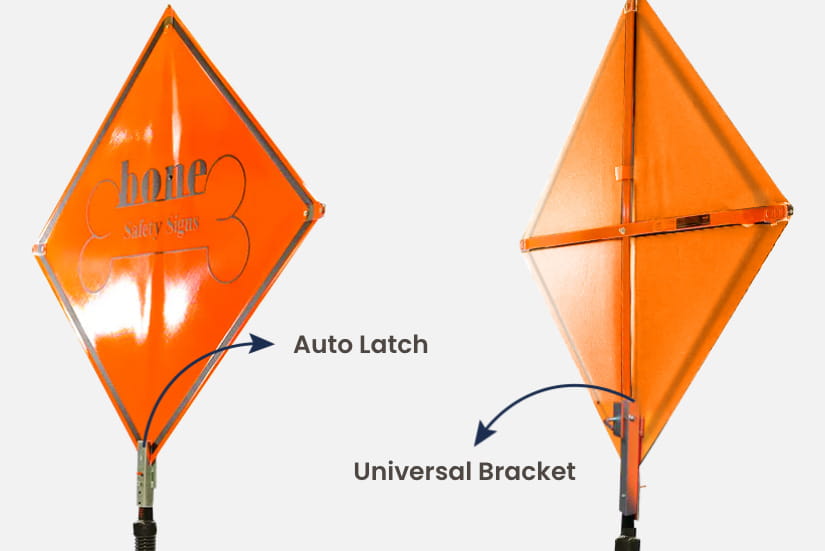

If you are using a Bone Safety manufactured sign, then all you will need is the Auto Latch system that comes with the stand. If you are using another manufacturer’s sign, then you will need to choose the Universal Bracket option.
